30T/H 8 Series Reclaimed Water Reuse System for an Industrial Park Factory in China
Item | Details |
Industry | Industrial Park Manufacturing |
Location | China |
Feed Water | Secondary treated wastewater / reclaimed industrial water |
System Capacity | 30 m3/h |
Product | 8 Series Reclaimed Water Reuse System |
Application | Cooling make-up water, equipment cleaning, utility reuse, and general process support |
30T/H 8 Series Reclaimed Water Reuse System for an Industrial Park Factory in China
As industrial parks in China continue to strengthen water conservation targets, more factories are investing in reclaimed water reuse systems to reduce freshwater consumption, lower discharge pressure, and improve sustainable operation. Stable recycled water can be used for cooling make-up, cleaning, utility water, and general production support, helping plants control both operating cost and environmental risk.
To support these goals, a factory located in a China industrial park selected Zhongnuo Water Treatment to provide a 30T/H 8 Series reclaimed water reuse system. The customized solution was designed to upgrade treated process wastewater into reusable industrial water through pretreatment, precision filtration, and RO purification, allowing the customer to reuse more water on site and improve overall water efficiency.
The customer needed a practical reclaimed water reuse system that could reduce freshwater demand while supplying stable reused water quality for factory operation.
1. Fluctuating Reclaimed Water Quality
The incoming reclaimed water contained residual suspended solids, organic matter, dissolved salts, and conductivity fluctuations. The treatment process needed to stabilize water quality before the water could be safely reused in the factory utility network.
2. Stable 30 m3/h Reuse Supply
The industrial park factory required a continuous 30 m3/h reuse water supply to support daily operations. The system therefore needed reliable throughput, automatic control, and strong protection for key treatment components.
3. Reduction of Freshwater Consumption
One of the customer's key goals was to reduce dependence on municipal or groundwater sources. Increasing the reuse ratio would help control operating cost and align with local environmental management requirements.
4. Low-Maintenance Automatic Operation
The customer expected a skid-mounted system with automatic monitoring, membrane flushing, fault alarms, and practical maintenance access so that daily operation would remain efficient with limited manual intervention.
Reclaimed Water Tank -> Feed Pump -> Multi-media Filter -> Activated Carbon Filter -> Precision Cartridge Filter -> High Pressure Pump -> RO Reuse Unit -> Reuse Water Tank -> Factory Cooling / Cleaning / Utility Water Supply
Equipment photo: 8 Series reclaimed water reuse skid with pretreatment and membrane section.
The 30T/H 8 Series reclaimed water reuse system is designed for industrial users who need to upgrade treated wastewater or reclaimed process water into stable reusable water. The system combines pretreatment, precision filtration, membrane purification, and automatic control to deliver dependable water quality for industrial reuse applications.
The complete process is designed to remove residual solids, organic contaminants, hardness-related scaling risk, and dissolved salts in a step-by-step manner. This improves membrane protection and helps ensure long-term reuse stability.
· Multi-media filtration reduces turbidity and suspended solids.
· Activated carbon helps remove residual color, odor, and organic matter.
· Precision cartridge filtration protects the high-pressure pump and membrane modules.
· RO treatment lowers conductivity and dissolved salts for more stable reuse water quality.
· Automatic flushing and monitoring help extend membrane life and simplify operation.
The treated reuse water can be applied to cooling systems, floor and equipment cleaning, utility water supply, and other non-potable industrial uses. By reusing more water on site, factories can reduce freshwater intake and improve the overall utilization of water resources.
The system is equipped with a PLC control cabinet and touchscreen interface, enabling operators to monitor flow, pressure, conductivity, water level, pump status, flushing status, and alarm records in real time. This helps improve operating reliability and supports easier daily management.
The 8 Series system adopts a skid-mounted integrated structure with corrosion-resistant piping, durable valves, stable membrane housings, and a practical electrical layout. The design is suitable for industrial park projects where installation space, maintenance convenience, and long-term operation are important.

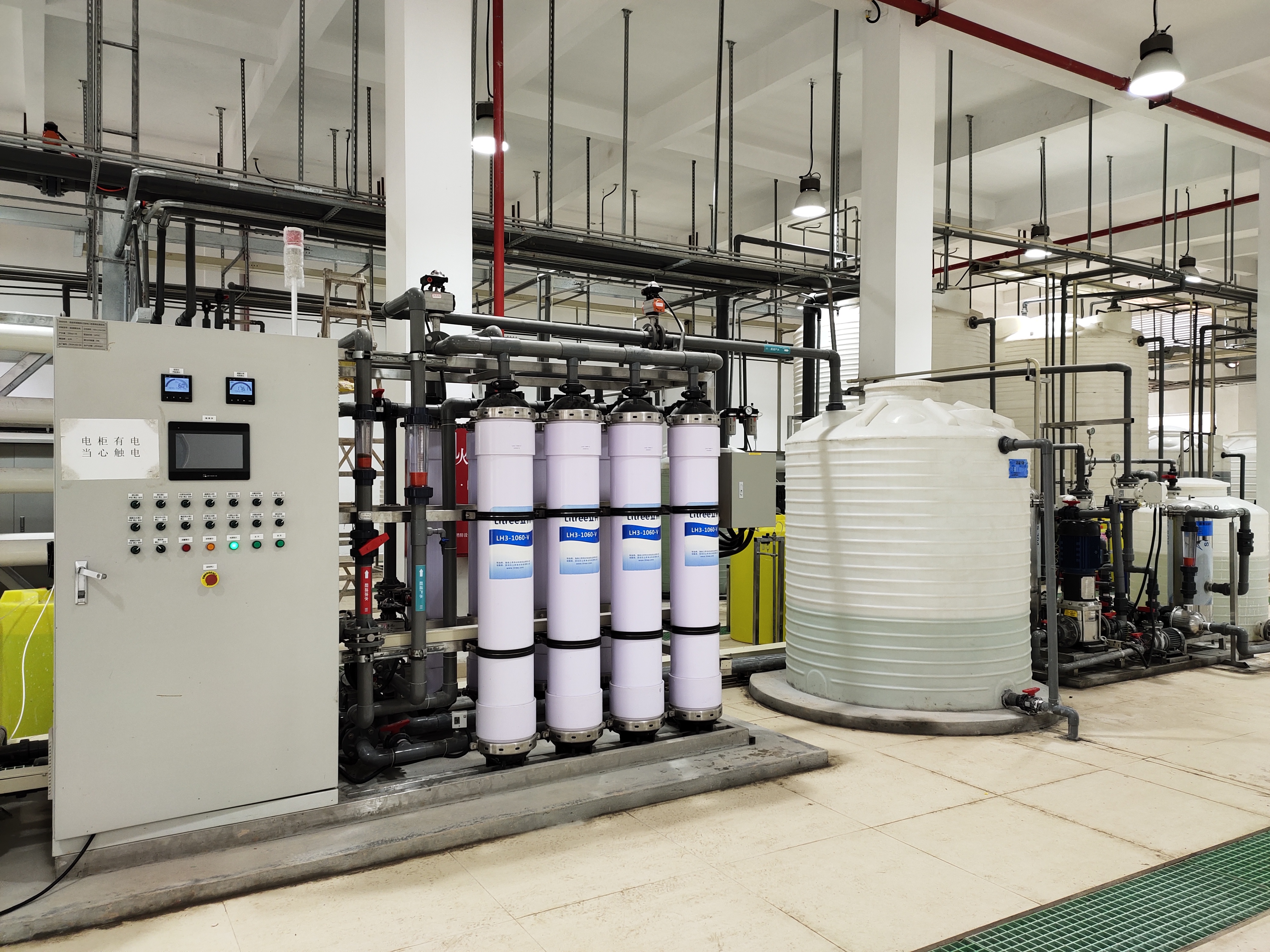

8 Series reclaimed water reuse equipment photo 1.
8 Series reclaimed water reuse equipment photo 2.

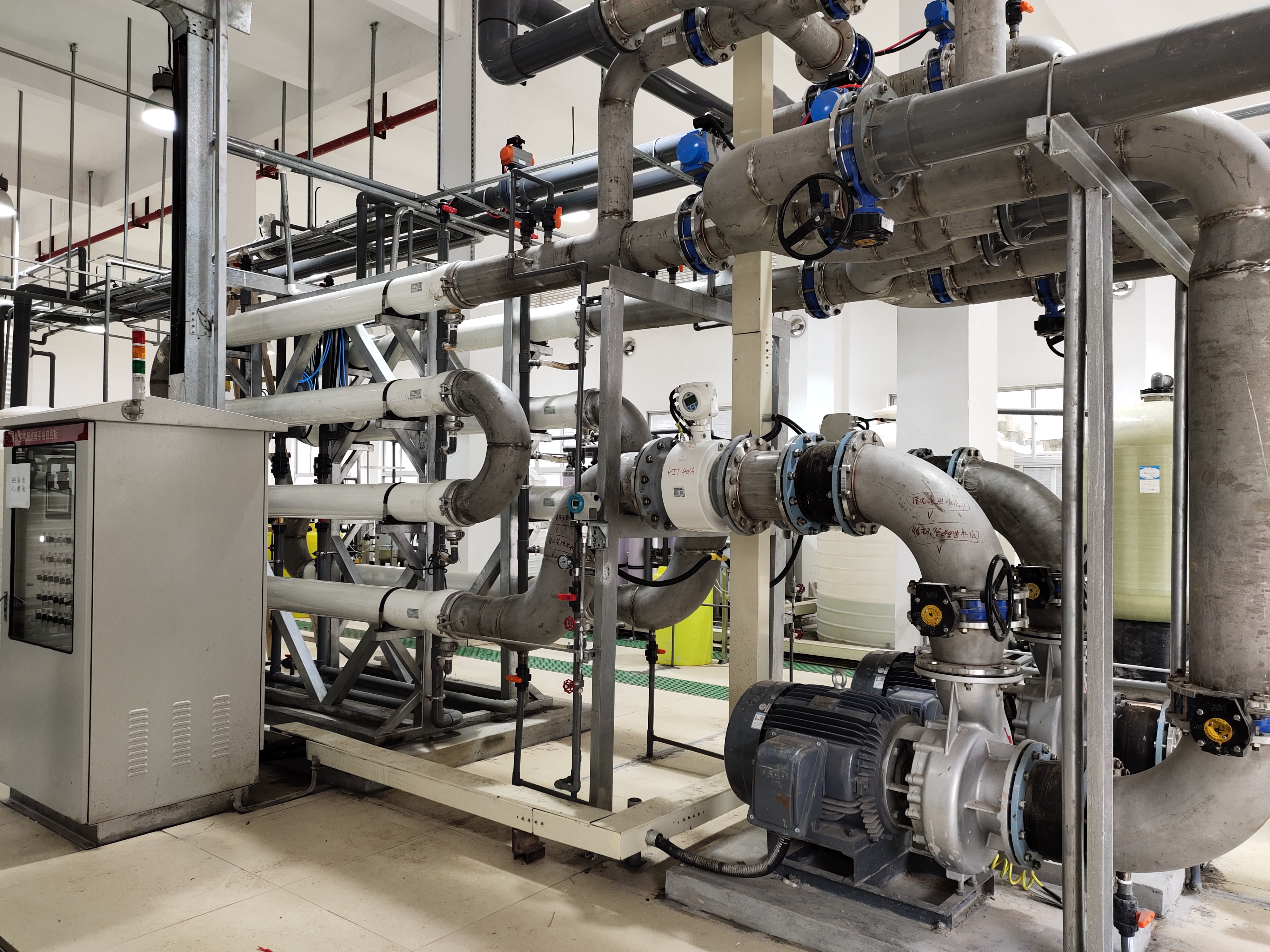

8 Series reclaimed water reuse equipment photo 3.

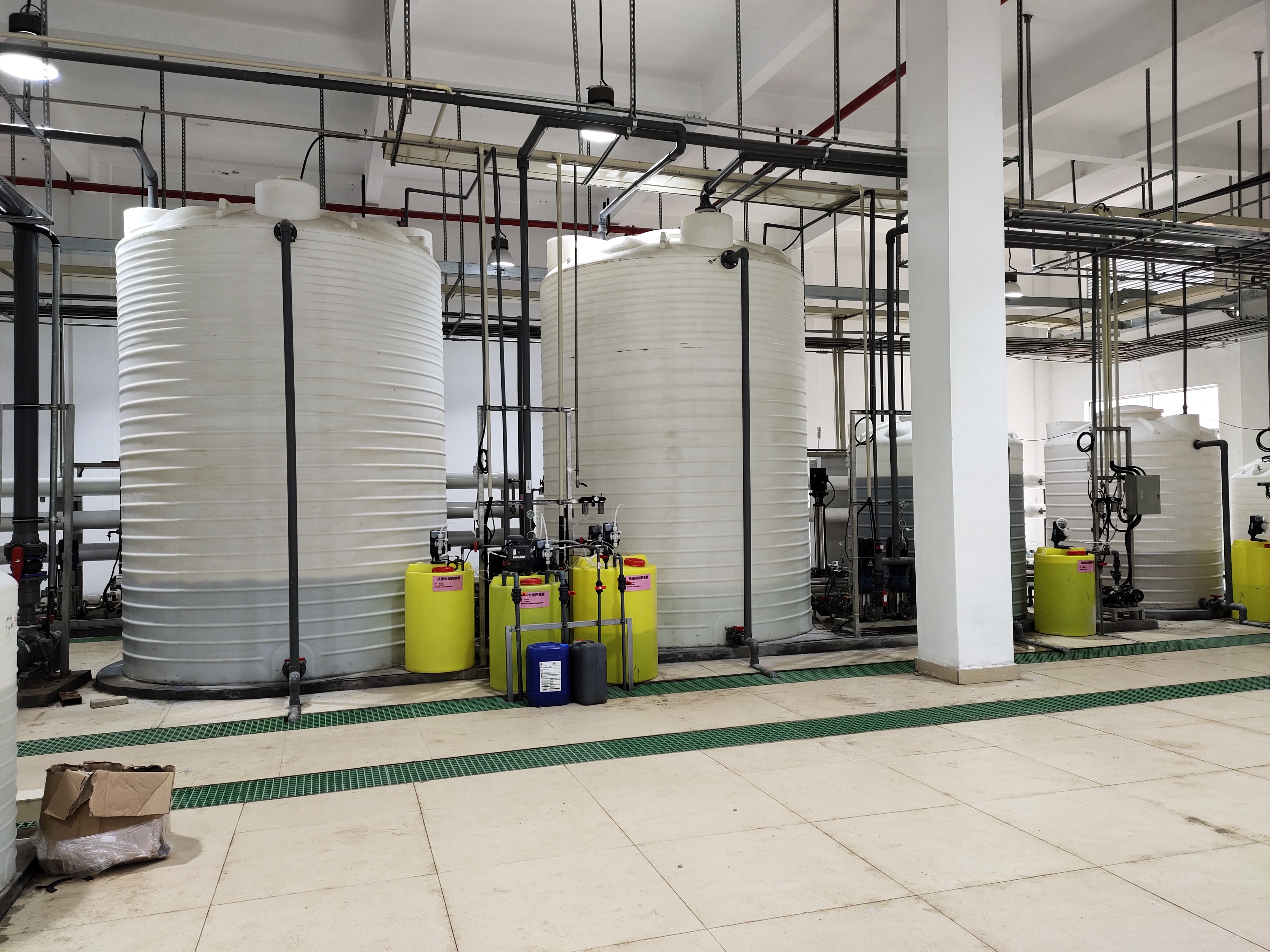

8 Series reclaimed water reuse equipment photo 4.

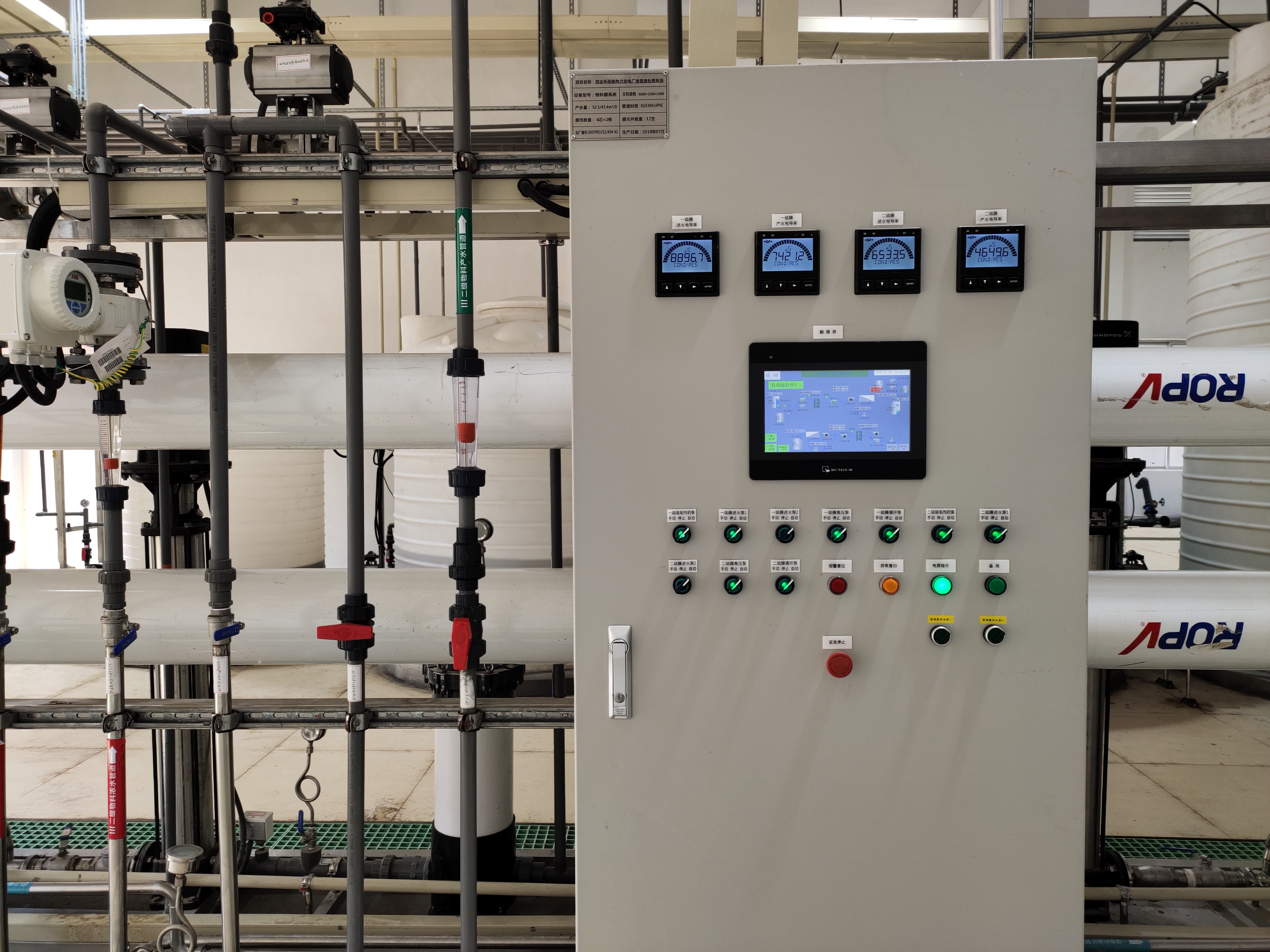

8 Series reclaimed water reuse equipment photo 5.

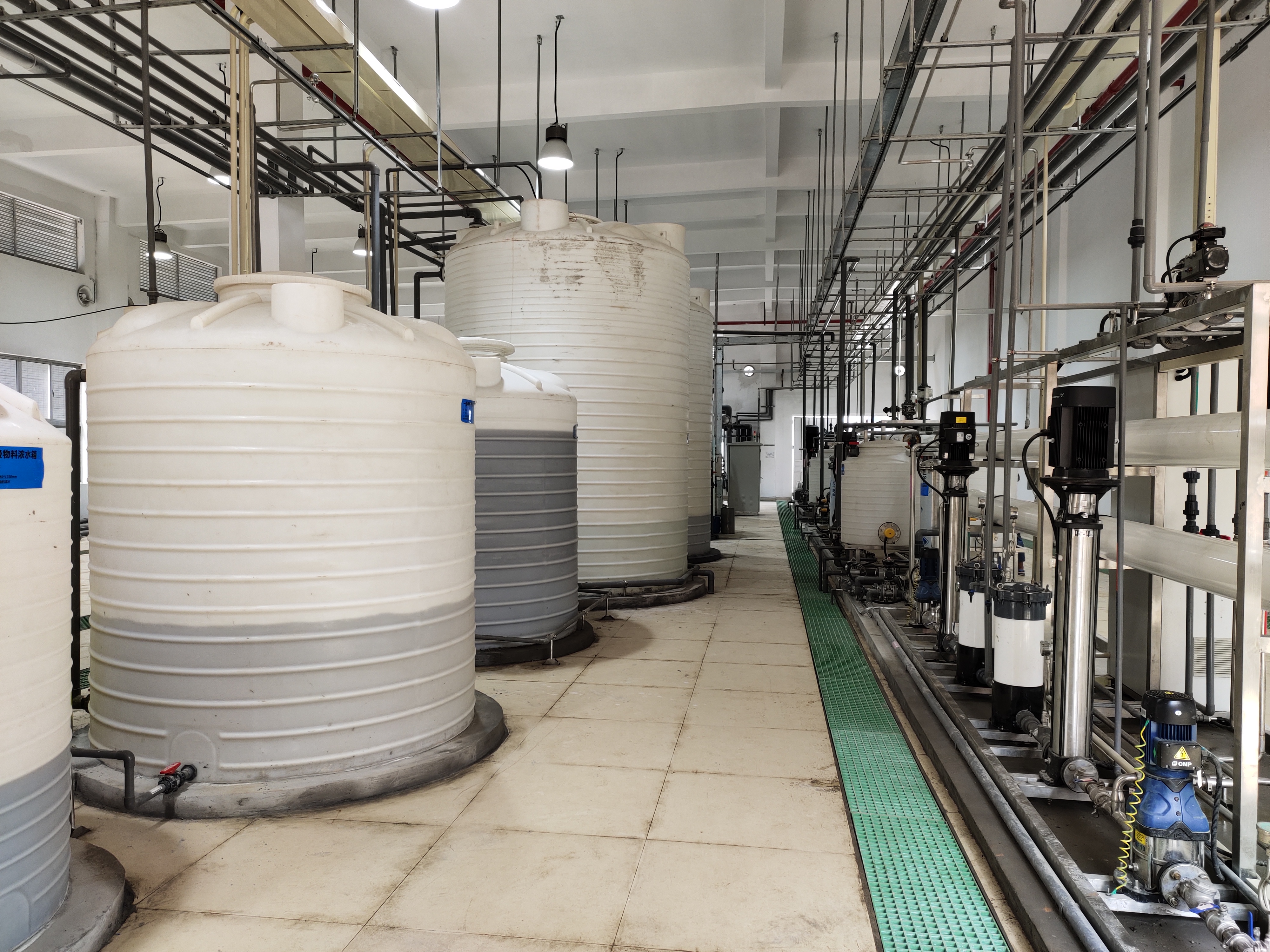

8 Series reclaimed water reuse equipment photo 6.

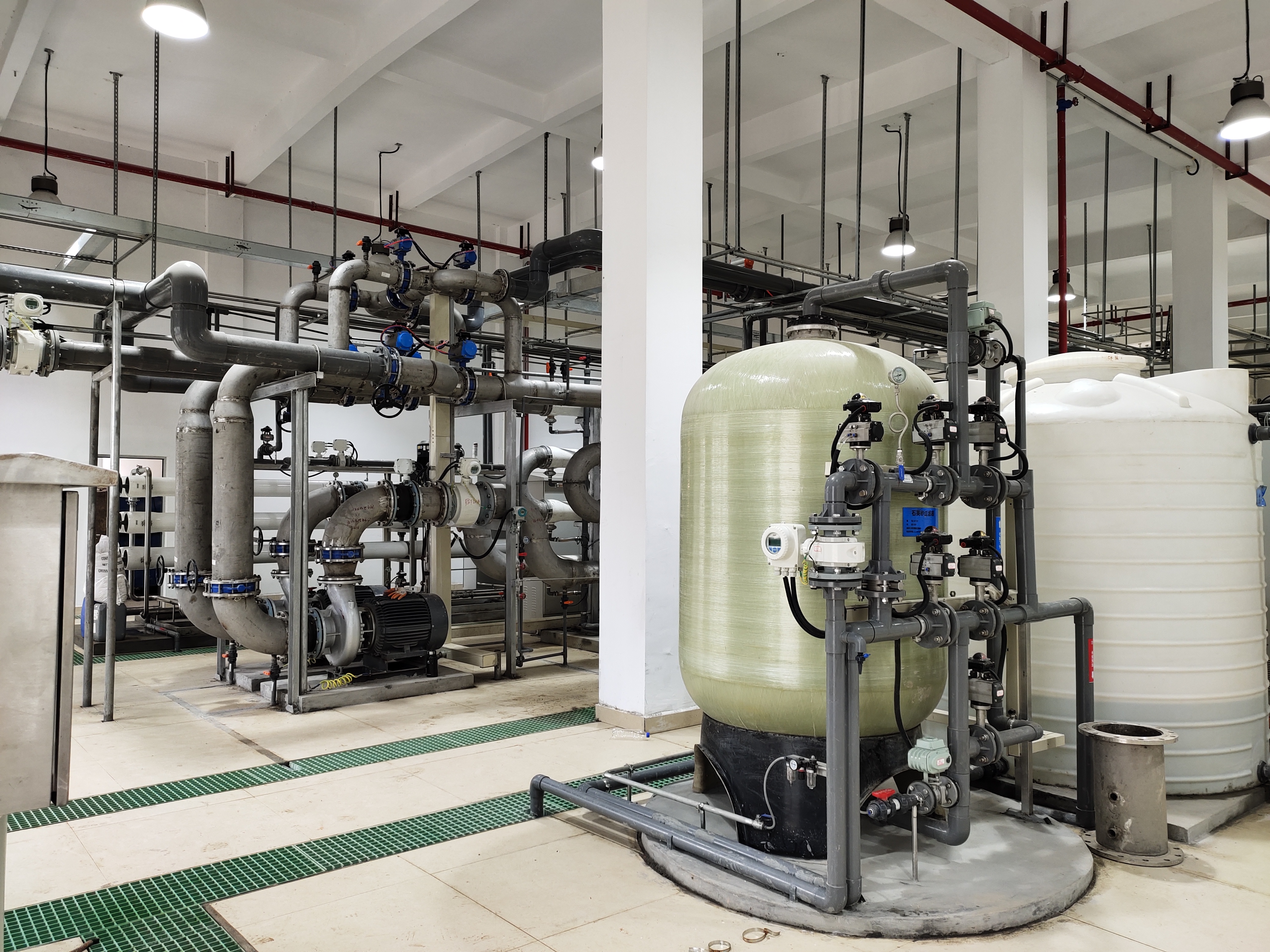

8 Series reclaimed water reuse equipment photo 7.
After installation and commissioning, the 30T/H reclaimed water reuse system provided the customer with a stable recycled water source for daily plant operation.
· Stable reclaimed water production of 30 m3/h
· Reduced freshwater consumption for factory utility use
· Improved reuse water quality and more reliable downstream operation
· Lower discharge pressure and better on-site water utilization
· Automatic operation with reduced labor input
· Practical support for environmental compliance and cost control
The customer recognized the system's stable reuse performance, practical design, and contribution to water-saving operation inside the industrial park. The project demonstrates Zhongnuo Water Treatment's ability to provide customized reclaimed water reuse solutions for industrial manufacturing users.
With more than 20 years of experience in industrial water treatment, Zhongnuo Water Treatment provides customized solutions for water reuse, reverse osmosis, ultrapure water, brackish water treatment, and desalination projects worldwide.
· Customized design according to raw water quality and reuse target
· Professional engineering support for industrial water recovery and recycling
· Stable automation and user-friendly maintenance design
· Turnkey support from technical design to installation guidance
· Flexible capacity range for different plant reuse requirements
Parameter | Specification |
System Capacity | 30 m3/h |
Product Series | 8 Series Reclaimed Water Reuse System |
Feed Water | Secondary treated wastewater / reclaimed industrial water |
Product Water | Industrial reuse water |
Control System | PLC + Touch Screen |
Operating Mode | Fully Automatic |
Main Technologies | Pretreatment + precision filtration + RO reuse |
Application | Cooling make-up, cleaning, utility water reuse, and process support |
1. Why do industrial parks need reclaimed water reuse systems?
Reclaimed water reuse systems help factories reduce freshwater consumption, lower water costs, improve wastewater utilization, and support environmental compliance and sustainable operation.
2. Can this 30T/H system be customized for different reclaimed water quality?
Yes. Zhongnuo Water Treatment customizes each reuse system according to conductivity, suspended solids, COD, reuse application, required capacity, and site conditions.
3. What information is needed before technical design and quotation?
A reclaimed water quality report, required reuse capacity, final water application, target water quality, voltage, installation site, and project country help engineers prepare an accurate solution.
4. Is the 8 Series system suitable for long-term industrial use?
Yes. The skid-mounted configuration, automatic control, and practical maintenance design make the 8 Series system suitable for long-term industrial reclaimed water reuse projects.
